BasicParametersModelNCM704RAHardwareFeaturesInterfaceWI-FISupportPowerInterfaceResetButtonBuilt-inMi

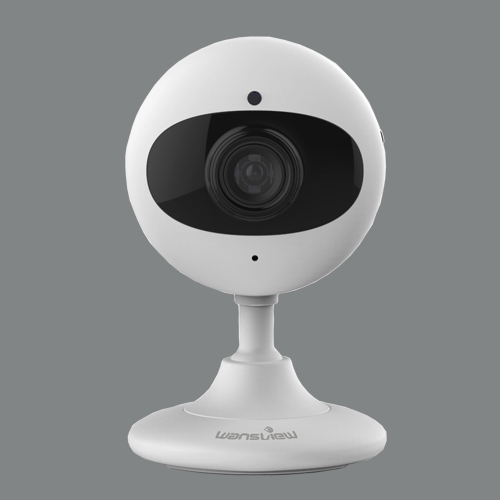

Model | NCM704RA | |
Hardware Features | Interface | WI-FI Support Power Interface Reset Button Built-in Microphone and speaker |
Pan/Tilt | N/A | |
Image Sensor | 1/2.7 ” CMOS Sensor | |
Display Resolution | 1920*1080/640*360 | |
Lens | f=2.8mm,F=1.8 Diagonal 140° Horizontal 120° | |
Dimension | 60*60*99.3mm | |
Power Input | 5V MicroUSB,<6W | |
Wireless Features | Wireless Speed | IEEE802.11b/g/n 150Mbps |
Operating Frequency | 2.4GHz | |
Channel | 1~13 | |
Security | 64/128-bit WEP, WPA/WPA2,WPA-PSK/WPA2-PSK | |
WPS | WPS push wireless connection | |
Software Features | Protocols & Standards | TCP/IP, DHCP, FTP, SMTP，NTP, UPNP,HTTP, UDP/IP，DDNS |
Image Compression | H.264 | |
Image Settings | Image Settings:Saturation, brightness, contrast adjustable through client software or web browser | |
Maximal Frame Rate | 25fps | |
Code rate | 256kbps~2048kbps | |
Account permissions | Three Level | |
Motion Detection | Support Four motion detection,send alarm pictures or video to Micro SD.send alarm pictures to FTP/Email. | |
Manage Software | P2P View client software (support Android, iPhone), | |
Audio | Two-way audio，Audio Compression: G.711 | |
PC Requirements | CPU 2.0GHz or above (suggested 3.0GHz) Memory Size 256MB or above (suggested 1.0GHz) Display Card 64M or above Windows 8,7,10，XP,Mac OS Browser:IE7/IE8/IE9/IE10/IE11,Firefox,Safari,Goolge Chrome,other standard browsers | |
SmartPhone requirements | Android version 4.5 and above; iOS version 7.0 and above; Windows Phone uses browser to view or the third party APPs. | |
Other parameters | Package Contents | One IP-Camera One Power adapter One Quick Guide |
Temperature | Operate Temper：-10℃ ~ ,50℃，Storage Temper：-40℃ ~ 70℃ | |
Humidity | Operating Humidity：10% ~ 90%，Storage Humidity：3% ~ 90% | |
certificates | CE,FCC |
