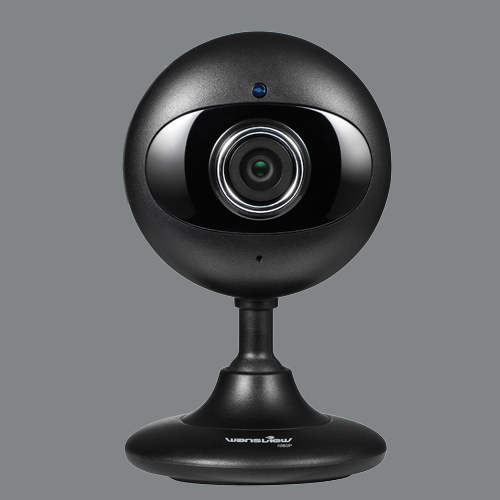

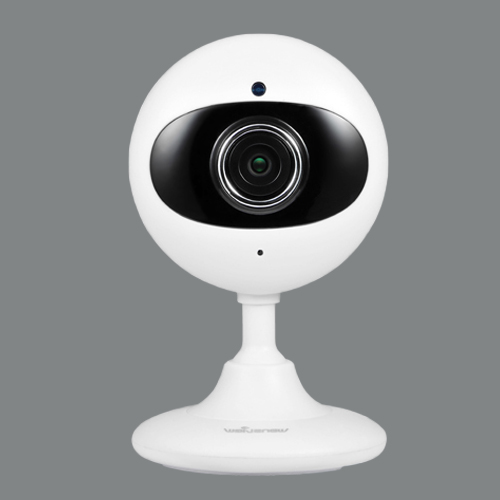

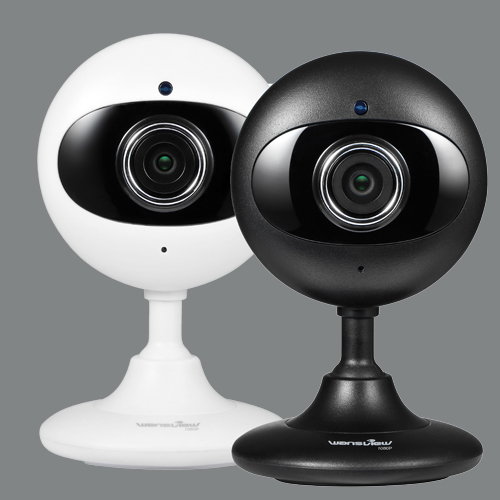

Smarteye IP Camera 703RB

                        Hardware Features

Interface

WI-FI   Support

Power   Interface

WPS/Reset Button

Built-in   Microphone and   speaker
          4infrared LED, 7m distance

Pan/Tilt

N/A

Image Sensor

1/4” CMOS Sensor

Display Resolution

1280*720/640*360/320*180

Lens

ff=2.5mm,F=2.0,View angle:115°

Dimension

60*60*99.3mm

Power Input

5V   DC,<3W

Wireless  Features

Wireless Speed

IEEE802.11b/g/n   150Mbps

Operating Frequency

2.4GHz

Channel

1~13

Security

64/128-bit WEP, WPA/WPA2,WPA-PSK/WPA2-PSK

WPS

WPS   push wireless   connection

                        Software Features

Protocols & Standards

TCP/IP,   DHCP,  FTP,   SMTP，NTP,   UPNP,HTTP, UDP/IP，DDNS

Image Compression

H.264

Image Settings

Image   Settings:Saturation,   brightness, contrast adjustable through client software   or web browser

Maximal Frame Rate

25fps

Code rate

256kbps~2048kbps

Account permissions

Three   Level

Motion Detection

Support   Four motion detection,send alarm pictures or video to Micro SD.send alarm   pictures to FTP/Email.

Manage Software

P2P   View client software   (support Android, iPhone),
          IP / DDNS View client software (support Android，iPhone),
          PC centralized control and management platform

Audio

Two-way     audio，Audio Compression: G.711

PC Requirements

CPU     2.0GHz or above (suggested 3.0GHz)

Memory     Size 256MB or above (suggested 1.0GHz)

Display     Card 64M or above

Windows     8,7,10，XP,Mac   OS

Browser:IE7/IE8/IE9/IE10/IE11,Firefox,Safari,Goolge     Chrome,other standard browsers

SmartPhone requirements

Android version 4.5 and above; iOS version 7.0 and above; Windows Phone uses browser to view or the third party APPs.

                        Other parameters

Package Contents

One   IP-Camera

One Warranty card

One   Quick Guide

Temperature

Operate     Temper：-10℃ ~ ,40℃，Storage Temper：-40℃     ~ 70℃

Humidity

Operating     Humidity：10%   ~ 90%，Storage   Humidity：3%     ~ 90%

certificates

CE,FCC
