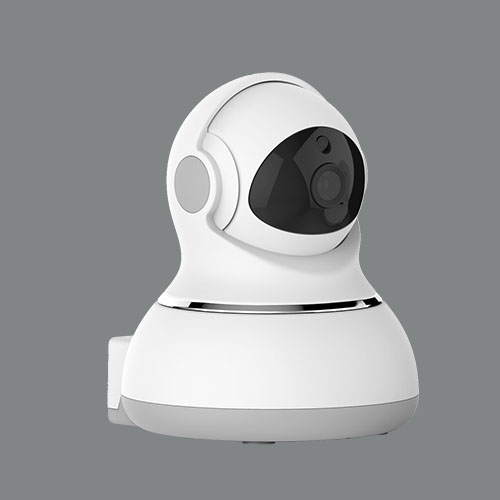

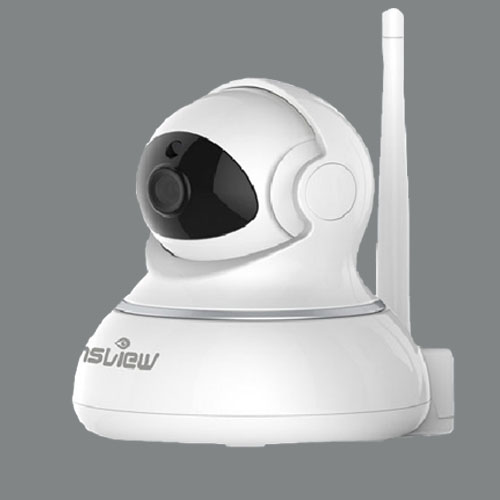

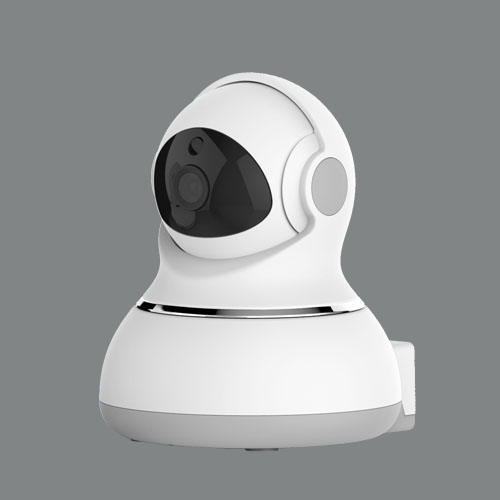

Smarteye IP Camera 633JA

                        Hardware Features

Interface

TF card slot

2.4GWifi Support

Power Interface(Micro USB)

Reset Button

Built-in Microphone & Speaker

4PSC SMT 850nm lights, Night Vision up to 23 feet

RJ45 network port

Pan/Tilt

PTZ: Pan: 350°,Tilt:76°

Image Sensor

superpix PS5260    2 million pixels

Display Resolution

2.0MP,1080P 1920*1080(640*360)

Lens

HD 2 million lens, f= 3.6mm F=2.7mm  angle110°

Dimension

93*112.8*131.3mm

Power Input

5V  1.5A<6W

Wireless  Features

Wireless Speed

IEEE802.11b/g/n   150Mbps

Operating Frequency

2.4GHz WIFI

Security

WPA/WPA2,WPA-PSK/WPA2-PSK

                        Software Features

Protocols & Standards

TCP/IP,   DHCP,  FTP,   SMTP，NTP,   UPNP,HTTP, UDP/IP，DDNS     P2P

Image Compression

H.264

Image Settings

Invert

Maximal Frame Rate

15 frames / sec

Code rate

425kbps-1024kbps

Account permissions

Support user sharing permissions

Motion Detection

Support motion detection

Manage Software

WANSVIEW CLOUD(support Android, iPhone)

Audio

 G.711

Device version requirement

CPU     2.0GHz or above (suggested 3.0GHz)

Memory     Size 256MB or above (suggested 1.0GHz)

One Warranty card

Windows     8,7,10，XP,Mac   OS

Browser:IE7/IE8/IE9/IE10/IE11,Firefox,Safari,Goolge     Chrome,other standard browsers

                        Other parameters

Package Contents

One   IP-Camera

One Power adapter

One Warranty cardMounting bracket set

One   Quick Guide

Mounting bracket set

Network cable

Temperature

－10°C~＋40°C

Humidity

10% – 90%

certificates

CE,FCC
