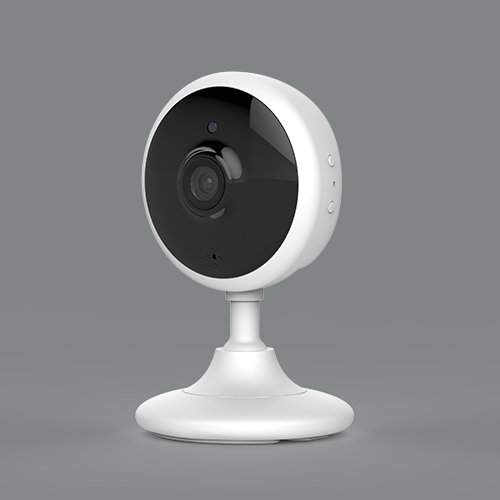

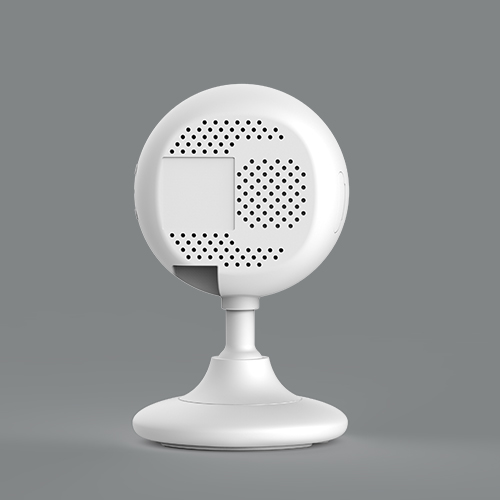

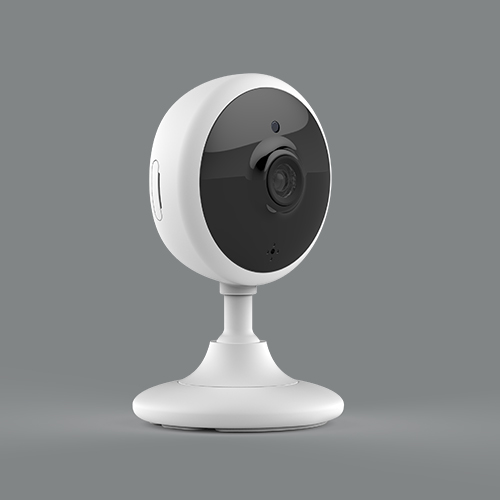

Smarteye IP Camera 702JBU

                        Hardware Features

Interface

2.4GWifi Support

Power Interface(Micro USB)

Reset   Button

Built-in Microphone & Speaker

4PCS SMT 850nm lights, Night Vision up to 23 feet

Pan/Tilt

N/A

Main IC

Ingenic T21N  512MBPS

Image Sensor

superpix SP2232   2 million pixels

Lens

HD 2 million lens, f= 2.8mm F=2.2mm  angle130°

Dimension

62*63*110mm

Power Input

5V 1A<6W

Wireless  Features

Wireless Speed

IEEE802.11b/g/n   150Mbps

Operating Frequency

2.4GHz WIFI

Security

WPA/WPA2,WPA-PSK/WPA2-PSK

                        Software Features

Protocols & Standards

TCP/IP、UDP/IP、HTTP、DHCP、NTP、802.11b/g/n

Image Compression

H.264

Image rotation

Invert

Maximal Frame Rate

15 frames / sec

Code rate

425kbps-1024kbps

Account permissions

Support user sharing permissions

Motion Detection

Support motion detection

Manage Software

AJCLOUD(support Android, iPhone)

Audio

 G.711

Device version requirement

"IOS 9.0 or higher (IPHONE 5S and its follow-up models)

Android 4.0 or higher

                        Other parameters

Package Contents

One   IP-Camera

One   Power adapter
Mounting bracket set

One   Quick Guide

Temperature

－10°C~＋40°C

Humidity

10% – 90%

certificates

CE,FCC
