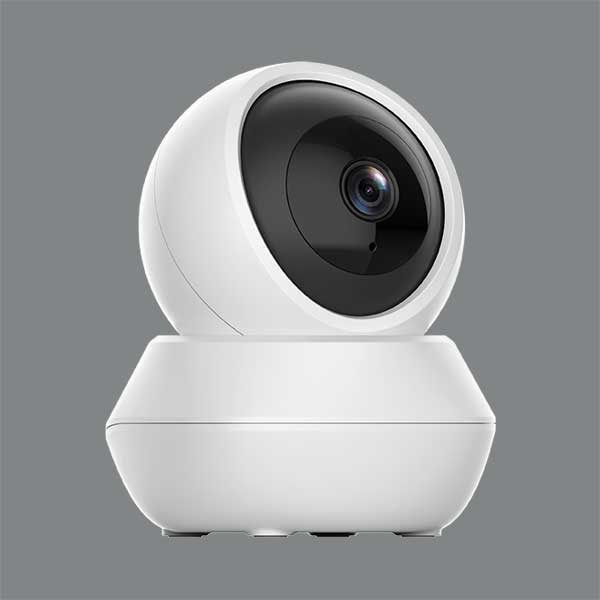

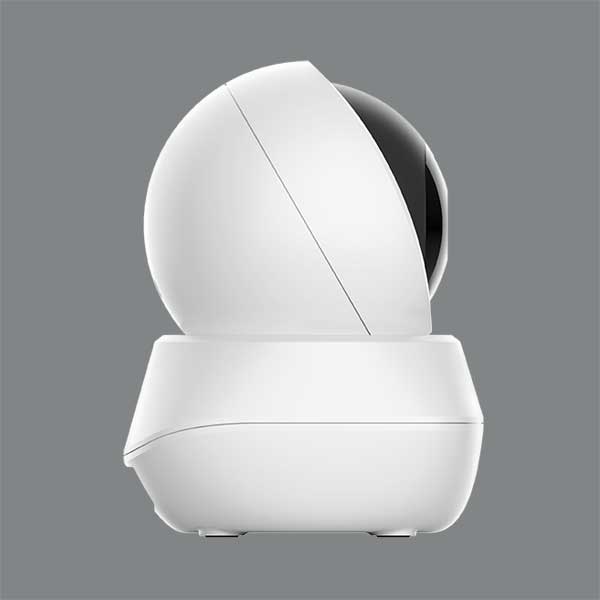

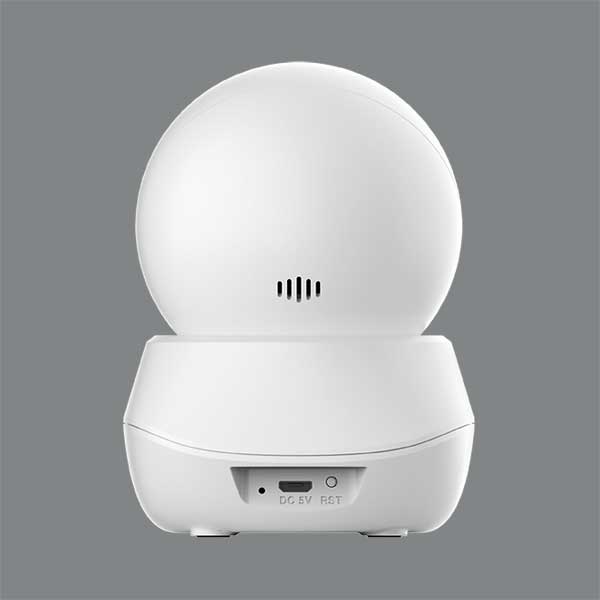

1620P/5MP,Full-HD-video-Quality,Dual-bandWIFI,2.4G,5G
| Specifications | |
| Main IC | T41N |
| Image Sensor | 1/2.7-inch cmos sensor |
| Display Resolution | 1620P (2880*1620P) /5MP |
| Mini. Illumination | 2 Lux (with infrared led on) |
| Focal Length | 4mm |
| Viewing Angle(D/H/V) | 125°/110°/57° |
| LED | 6pcs 960nm LED IR distance up to 8 meters |
| Day night mode | IR cut filter with auto switch |
| Image Compression | H.265 |
| Mirrow flip | Support |
| View mode | HD & SD |
| Audio | Built-in Mic & Speaker |
| Supported protocols | TCP/IP, RTSP, DHCP,NTP,ONVIF,UDP/IP,HTTP |
| Dynamic DNS | Support |
| Stream | Dual Stream |
| wireless | IEEE802.11b/g/n |
| Frequency | 2.4G+5G |
| Bluetooth | Support configuration network |
| Antennas | built-in |
| Antenna gain | 3dB |
| Wireless Security | 64/128-bit WEP, WPA/WPA2,WPA-PSK/WPA2-PSK |
| Range | Horizontal: 345 degree |
| Vertical: 71 degree | |
| Remote management | Yes APP remote |
| Multiple user management | Support (in app) |
| Split screen view | Support (in app) |
| Mobile app | IOS & Android |
| Motion detection | Support |
| Notification method | Mobile Push |
| Remote Access | P2P |
| LED indicator Light | Blue, Red |
| Storage | Micro SD Card up to 256GB |
| Cloud | Support cloud storage |
| Certifications | CE,FCC |
| Alexa | Support |
| Google Home | Support |
| Bare metal weight(g) | 183g |
| Bare metal size | 101.5*72*72MM |
| Bare package weight (g) | 415g |
| Bare metal package size | 128*115*85mm |
| Packing Quantity | 1=36 |
| Maximum power consumption | 3.75w |
| Power parameters | DC5V 1A micro USB |
| Working Temperature | -10°C ~ 50°C |
| Working Humidity | 20% ~ 95% non-condensing |
