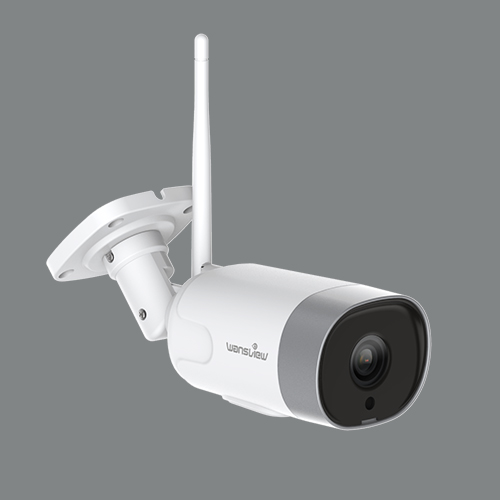

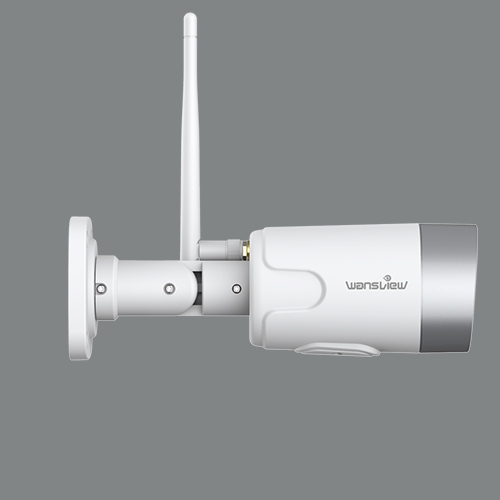

Smarteye Outdoor IP Camera 758JA

                        Hardware Features

Interface

TF card slot

2.4GWifi Support

Power Interface(Tuning fork big head)

Reset Button

Built-in Microphone & Speaker

15PCS  SMT 850nm lights, Night Vision up to 85 feet

RJ45 network port

Pan/Tilt

N/A

Image Sensor

superpix PS5260    4 million pixels

Display Resolution

2.0MP,1080P 1920*1080(640*360)

Lens

HD 4 million lens, f= 4mm F=2.8mm  angle100°

Dimension

187*71*66 mm

Power Input

12V 1A<7W

Wireless  Features

Wireless Speed

IEEE802.11b/g/n   150Mbps

Operating Frequency

2.4GHz WIFI

Security

WPA/WPA2,WPA-PSK/WPA2-PSK

                        Software Features

Protocols & Standards

TCP/IP、UDP/IP、HTTP、DHCP、NTP、802.11b/g/n ONVIF

Image Compression

H.264

Image Settings

Invert

Maximal Frame Rate

15 frames / sec

Code rate

425kbps-1024kbps

Account permissions

Support user sharing permissions

Motion Detection

Support motion detection

Manage Software

WANSVIEW CLOUD(support Android, iPhone)

Audio

 G.711

Device version requirement

IOS 9.0 or higher (iphone 5S and its follow-up models)

Android 4.0 or higher

SmartPhone requirements

Android version 4.5 and above; iOS version 7.0 and above; Windows Phone uses browser to view or the third party APPs.

                        Other parameters

Package Contents

One   IP-Camera

One   Power adapter
          Mounting bracket set

One Warranty card

One   Quick Guide

Network cable

3DB antenna

Temperature

－10°C~＋40°C

Humidity

10% – 90%

certificates

CE,FCC
