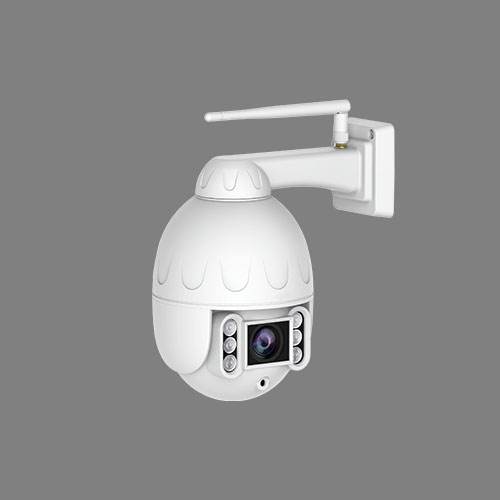

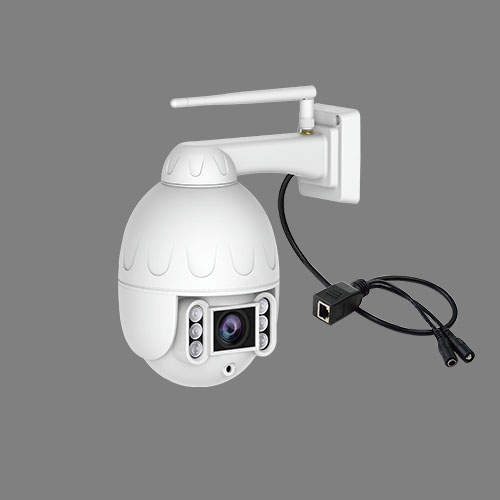

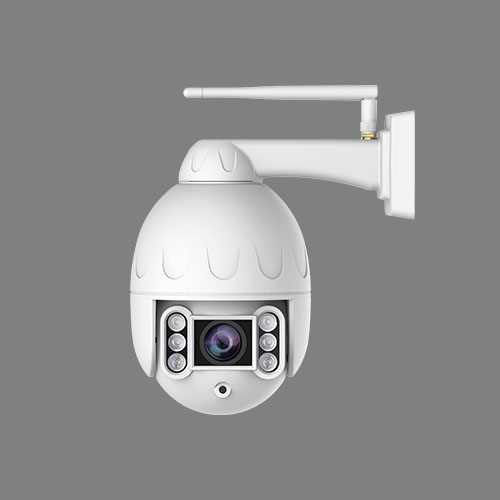

Smarteye Dome IP Camera 791JA

                        Hardware Features

Interface

TF card slot

2.4GWifi Support

Power Interface(Tuning fork big head)

Reset Button4infrared LED, 7m distance

Built-in Microphone & Speaker

6 850nm array infrared lamps, Night Vision up to 130 feet

RJ45 network port

Pan/Tilt

PTZ: Pan: 350°,Tilt:120°

Image Sensor

superpix PS5260    2 million pixels

Display Resolution

2.0MP,1080P 1920*1080(640*360)

Lens

HD 2 million lens, f= 2.7-13.5mm F=2.7mm  angle°

Dimension

168*108*182mm

Power Input

12V 1A<7W

Wireless  Features

Wireless Speed

IEEE802.11b/g/n   150Mbps

Operating Frequency

2.4GHz WIFI

Channel

Security

64/128-bit WEP, WPA/WPA2,WPA-PSK/WPA2-PSK

WPS

                        Software Features

Protocols & Standards

TCP/IP,   DHCP,  FTP,   SMTP，NTP,   UPNP,HTTP, UDP/IP，DDNS     P2P  ONVIF

Image Compression

H.264

Image Settings

Invert

Maximal Frame Rate

15 frames / sec

Code rate

425kbps-1024kbps

Account permissions

Support user sharing permissions

Motion Detection

Support motion detection

Manage Software

WANSVIEW CLOUD(support Android, iPhone)

Audio

G.711

Device version requirement

IOS 9.0 or higher (iphone 5S and its follow-up models)

Android 4.0 or higher

                        Other parameters

Package Contents

One   IP-Camera

One Warranty card

One Power adapter

One   Quick Guide

Mounting bracket set

Network cable

3DB antenna

Temperature

Operate     Temper：-10℃ ~ ,40℃，Storage Temper：-40℃     ~ 70℃

Humidity

Operating     Humidity：10%   ~ 90%，Storage   Humidity：3%     ~ 90%

certificates

CE,FCC
