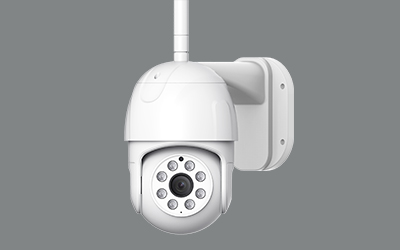

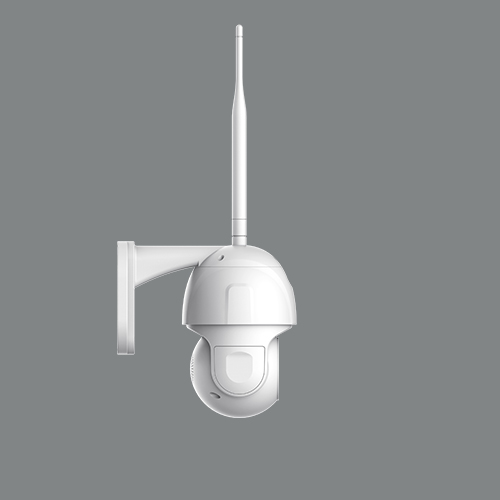

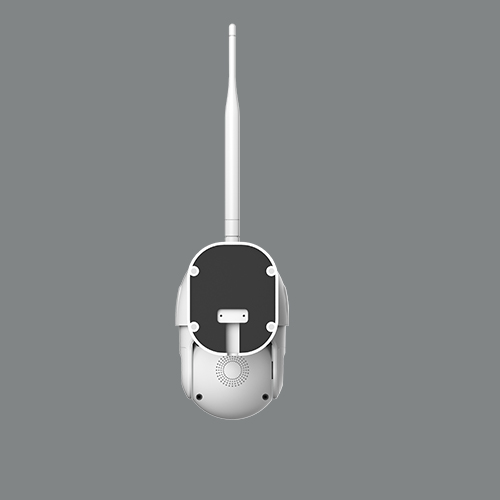

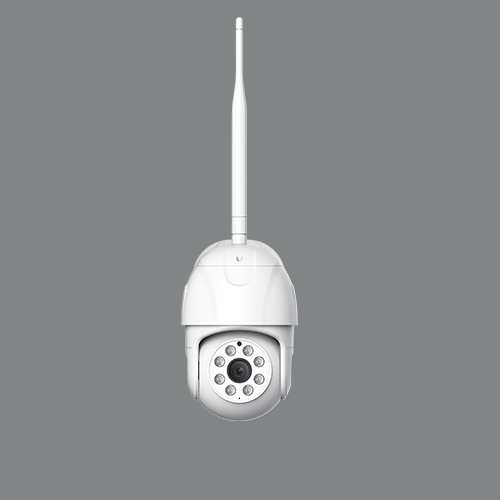

Smarteye IP Camera 794JBU

Hardware Features

Interface

TF card slot

2.4GWifi Support

USB Interface

USB power interface

Built-in Microphone & Speaker

8 850nm infrared lamps, The effective range of night vision is about 32-49 feet

RJ45 network port

Pan/Tilt

PTZ: Pan: 350°,Tilt:95°

Main IC

Ingenic T21N  512M memory

Image Sensor

superpix SP2305   2 million pixels

Lens

HD 4 million lens, f = 4mm F = 2.8mm.

90° horizontal; 105° diagonal

IR-CUT

Electromagnetic IRCUT is used. Day and night function.

Wireless Speed

IEEE802.11b/g/n 150Mbps

Wireless  Features

Operating Frequency

2.4 G   WIFI

Security

64/128-bit WEP, WPA/WPA2,WPA-PSK/WPA2-PSK

Protocols & Standards

TCP/IP、UDP/IP、HTTP、DHCP、NTP、802.11b/g/n

Video image format

H.264

Image rotation

Invert

Software Features

Maximal Frame Rate

15 frames / sec

Code rate

425kbps-1024kbps

Account permissions

Support user sharing permissions

Motion Detection

Support motion detection

Alarm action

Cloud storage/TF card

Voice intercom

Support two-way voice intercom

Time/date setting

Support network correction time, and automatically update

upgrade

Support remote upgrade via network

Manage Software

 AJCLOUD(support Android, iPhone)

audio format

G.711A\AAC

Device version requirement

IOS 9.0 or higher (iphone 5S and its follow-up models)

Android 4.0 or higher

                        Other parameters

Bare metal

Packing box + inner support

Installation guide

power supply

Wall mounting kit

Network cable

1PCS (with 3m power cord)

1PCS

1PCS

5V 1A (without wire) 1PCS

Screw package 1PCS

5DB 1PCS

1.5m network cable 1PCS

Temperature

－10°C~＋50°C

Humidity

10% – 90%

certificates

CE,FCC，ROHS
