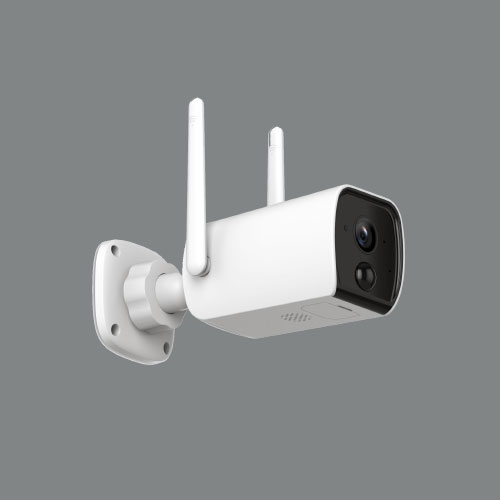

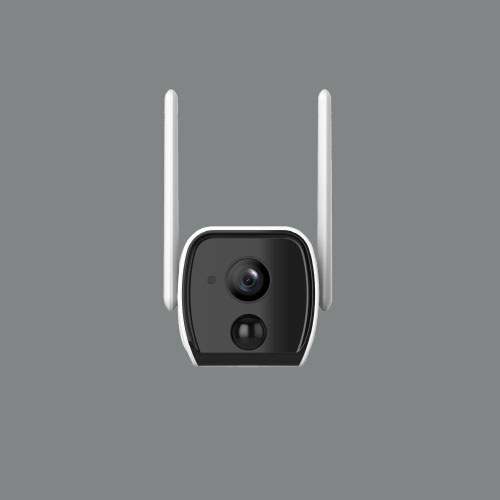

| Product model | 804RTD | |
| Major hardware | main chip | Ingenic T31ZL 512M DDR |
| Image Sensor | 1/2.9" 2MP pixels | |
| Total number of pixels | 2.0MP,1080P 1920*1080 | |
| Lens | HD 2 million lens, f = 3.6mm Diagonal: 95 ° | |
| Pan/Tilt | Horizontal angle | \ |
| Vertical angle | \ | |
| Auxiliary lighting | Infrared light | 8pcs 850nm SMD external lights 10m effective |
| Photosensitive sensor | Automatically controlled by light sensor | |
| IRCUT | Adopt electromagnetic IRCUT, day and night function, double filter | |
| Audio and video processing | Resolution | 1920*1080 |
| Video compression format | H.264 | |
| Maximum frame rate | 15 frames/sec | |
| Code rate | 425kbps-1024kbps | |
| Image rotation | invert | |
| Audio compression format | G.711A\AAC | |
| network | Basic agreement | TCP/IP、UDP/IP、HTTP、DHCP、NTP、802.11b/g/n |
| WIFI frequency | 2.4G WiFi | |
| Other agreements | \ | |
| Hardware | Ethernet interface | \ |
| power supply | Type-c interface power supply | |
| button | Light touch reset button | |
| Self-locking switch | ||
| Storage interface | TF card slot | |
| Alarm input | \ | |
| Alarm output | \ | |
| Audio input | Built-in microphone | |
| Audio output | Built-in speaker | |
| WIFI | Built-in 2.4G frequency WIFI module | |
| antenna | External integral 3DB antenna | |
| Other characteristics | PIR | Support motion detection, PIR sensitivity can be adjusted in three levels, 4-7 meters |
| Alarm storage | Cloud storage\TF card | |
| Two-way voice | support | |
| Share user | Support user sharing permissions | |
| Time/date setting | Support network calibration time and update automatically | |
| upgrade | Remote OTA upgrade via network | |
| S/N | The manufacturer provides free S/N and writes to the device; | |
| packing list | Bare metal | 1PCS |
| Packing box + inner support | 1PCS | |
| Installation guide | 1PCS | |
| Wall-mounted installation package | Screw pack + Phillips screwdriver 1PCS | |
| antenna | Comes with an antenna | |
| Network cable | \ | |
| Physical index | Bare machine weight (g) | 348g |
| Bare machine size (length*width*height) | 175*79.8*67.3 (with bracket) | |
| Bare metal packaging weight (g) | ||
| Bare metal packaging size | 217*97*88MM | |
| Packing quantity | ||
| Gross weight of the whole box | ||
| powered by | 5V2A adapter | |
| Waterproof and dustproof grade | IP65 | |
| Maximum power consumption | 3.5W | |
| Operating temperature | －10°C~＋50°C | |
| Working humidity | 10% – 90% | |
| Access method | Mobile phone client software | Wansview Cloud\AJCLOUD |
| Device version requirements | IOS 9.0 or higher (iphone 5S and subsequent models) | |
| Android 4.0 or higher version | ||
